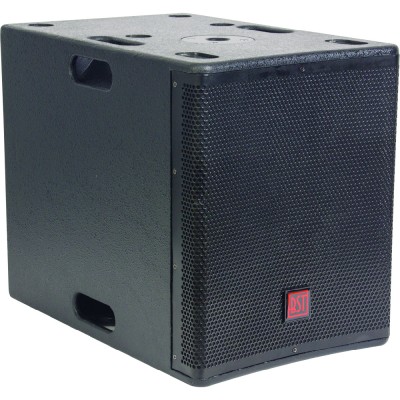

Active Bass Reflex Subwoofer 12”/30 cm 1000 W

Description

Active bass reflex subwoofer with a 12”/30 cm transducer and a 800 W on-board amplifier.

Diffusore subwoofer attivo in configurazione bass reflex con un trasduttore da 12"/30 cm e amplificatore da 800 W integrato.

.Subwoofer actif Bass reflex 12'' de 800W équipée d’un amplificateur de classe D. 4 différents modes de fonctionnement : live, music, Dj1, Dj2. DSP à affichage LCD de 24 bits avec une fréquence d’échantillonnage de 96 kHz. 2 entrées combo ligne /microphone (XLR ou Jack 6,35 mm). Sortie Link (XLR). Circuit de protections contre : surchauffe, surcharge, DC, surtension, basse tension, soft start. Refroidissement par dissipateur. Bande passante (-10dB): 40Hz-160Hz.

Tech Card

• Class D amplifier with DSP control
• 24 bit DSP with 96 kHz sampling frequency
• Modes: Live, Music, DJ1, DJ2
• DSP display
• 2 x Combo Line/Mic in, XLR Mix out
• Illuminated front logo with on/off switch
• Indicators: Limit, Signal, Power
• Protection circuits: Thermal, overload, DC protect, over voltage, low voltage, soft start
• Heat-sink cooling

Power RMS/programme/peak	400/800/1600 W
Freq. Response (-10 dB)	40 Hz - 160 Hz
Sensitivity (1 W @ 1 m)	100 dB
Nominal Impedance	4 ohms
Woofer	12"/30 cm
Voice coil	3"
Magnet	80 oz
Finish	Textured paint
Dimensions (W x H x D)	420 x 510 x 520 mm
Input voltage	220 - 240 V AC 50 Hz
Net Weight	23.5 kg
